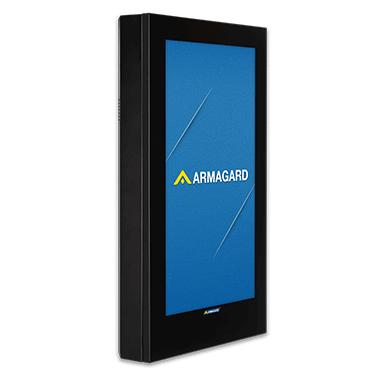

Portrait flat panel enclosure

Flat panel enclosure ideal for use as information boards or digital advertising displays.

Portrait enclosures can be better positioned at eye level and are ideal as information boards and digital advertising displays. Sealed to IP54 the flat panel enclosures can be fitted to handle temperatures between -30° to +55° (with air conditioning) and offer a comprehensive solution for display security.

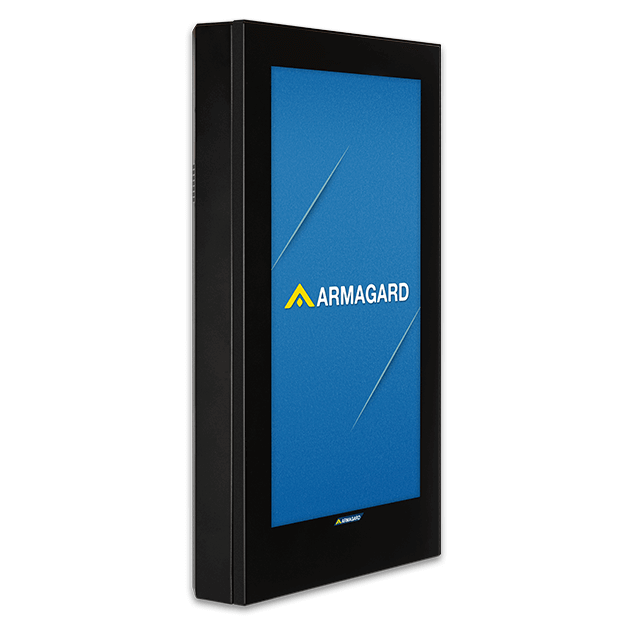

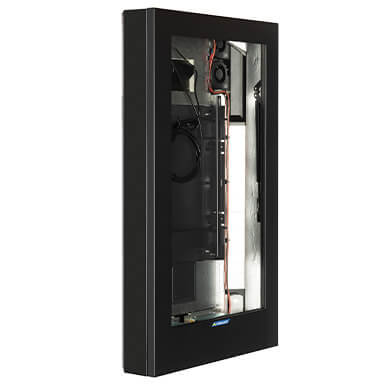

A Portrait Flat Panel Enclosure, Facing Right

Click thumbnails for larger images:

Request prices

Ideal For:

  • Studios.
  • Receptions.
  • Store Fronts.
  • Transport Areas.
  • Information Displays.

At A Glance:

Size (HxWxD)mm:
See Specifications Table
Material:
Powder Coated Mild Steel
Screen Size:
up to 75"
IP Rating:
IP54, IP56, IP65
Product Code:
PDS18-W-P-CB2

Features & Benefits:

Lockable and secure and sealed to IP54 an Armagard Portrait flat panel enclosure offers the best solution to showcase information or digital advertising to the public, in a indoor or outdoor environment both safely and securely.

Your Flat panel enclosure protects against:

  • Light rainfall - ideal for outdoor locations
  • Dust and small particulates - ideal for indoor environments
  • Electrical surges - making computer crashes a thing of the past
  • Physical impact - cutting down on repairs and replacement of monitors
  • Temperature extremes - saving you money on additional heaters or air-conditioning
  • Theft - giving you peace of mind

Armagard Portrait Enclosures - all in one digital signage protection.

Armagard LCD Enclosures PDS-series sizes
Table describing the Size (HxWxD), mounting orientation, fabrication material and product codes for the Armagard Portrait LCD enclosure range.
Max Screen Size: Height(mm): Width(mm): Depth(mm): Product Code:
32″ 1000 603 233 PDS-32-W-P-UK
42″ 1305 728 247 PDS-42-W-P-UK
47″ 1400 750 247 PDS-47-W-P-UK
52″ 1520 873 247 PDS-52-W-P-UK
55″ 1640 903 231 PDS-55-W-P-UK
60″ 1774 995 269 PDS-60-W-P-UK
75″ 2000 1160 205 PDS18-75-W-P-UK
For full specifications & prices — Contact Us Now!

Specifications:

PDS Series Comparison Table

Comparison of the specifications of the different LCD enclosures by Armagard
Base/Indoor Standard Cold Climate Hot Climate
Indoor Fully Outdoor Fully Outdoor Fully Outdoor
All Sizes 32", 42", 47", 49", 52", 55", 60", 65", 70", 72" & 75"
Model Code B S H AC
Teperature Range 0°C to 30°C -5°C to 35°C -30°C to 35°C -30°C to 55°C
IP/NEMA Rating IP54 IP56 IP56 IP65
Colour Black Black Black Black
Interior Mounting
Dual Security Locks
Filter Fans Static Fans
Anti-Reflective Window 4mm, Anti-Reflective Polycarbonate 4mm, Anti-Reflective Polycarbonate 4mm, Anti-Reflective Toughened Glass 4mm, Anti-Reflective Toughened Glass
Air Curtain
Plenum Chambers Sealed
Internal Heating
Insulation
Controller Board
Air Conditioning
(White Colour)
Wall Mounting (Optional) Flat or Tilt Mount
(Sold Separately)		 Flat or Tilt Mount
(Sold Separately)		 Flat or Tilt Mount
(Sold Separately)		 Requires AC Brackets
(Flat, Sold Separately)
For full specifications & prices — Contact Us Now!
