LCD Enclosure

Protection of LCD screens in outdoor, public or harsh industrial environments.

Protecting against collisions, particle ingress, heavy rain, and sealed to IP54, LCD enclosures offer a rugged, cost-efficient alternative to dedicated outdoor displays, where customers can integrate their own thin-client PC and LCD display, and benefit from long-term outdoor security.

Usable with a variety of commercial-grade displays, LCD enclosures allow you to upgrade hardware when needed most, are available in sizes 24” up to 75”, and provide the perfect solution for outdoor locations where vandalism may be a concern.

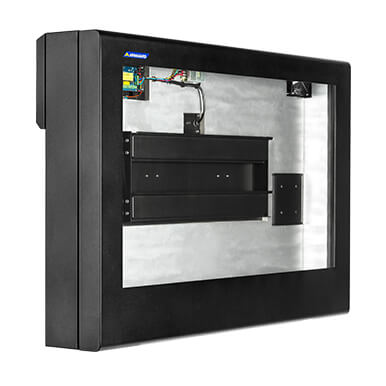

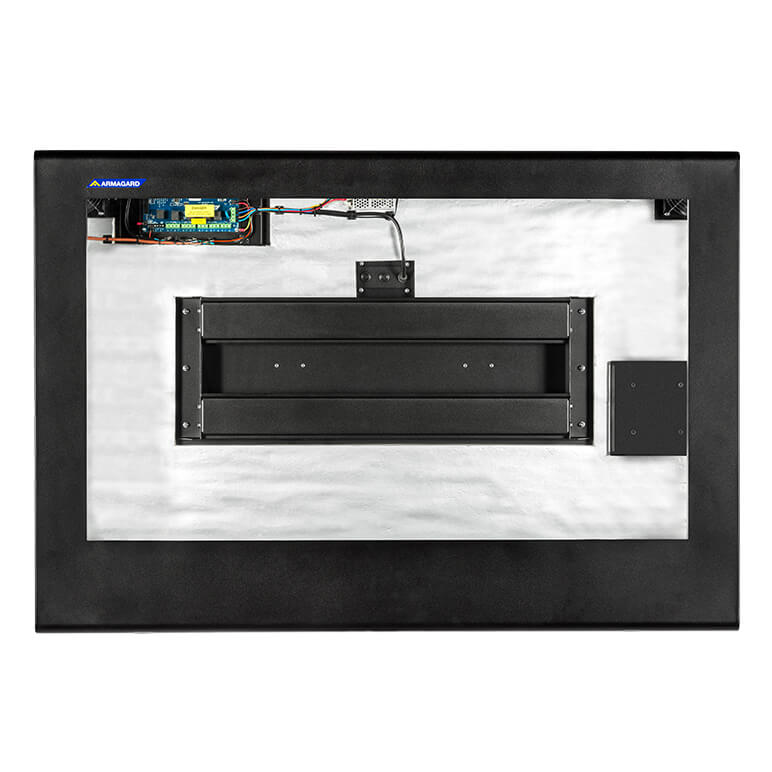

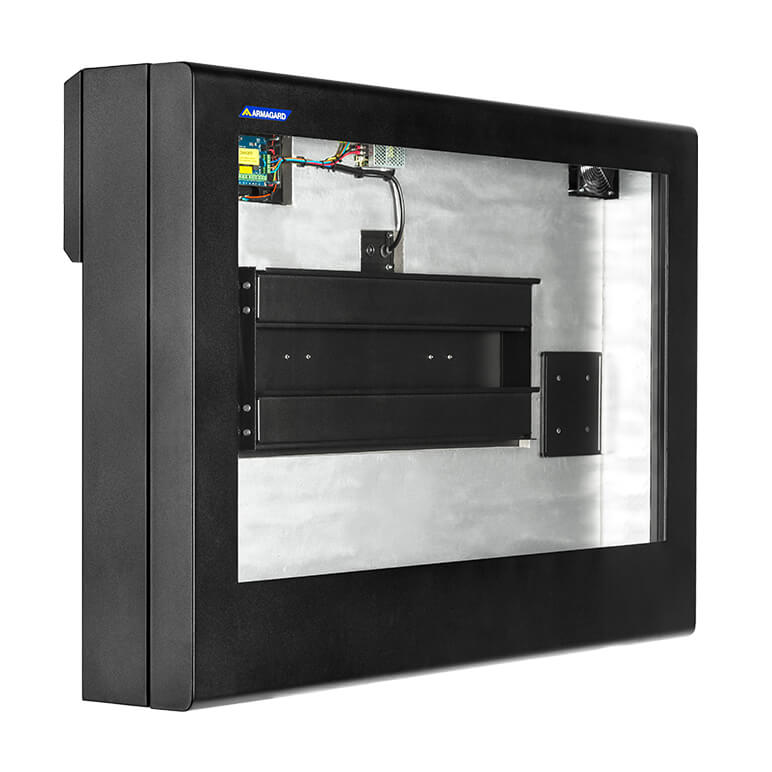

LCD enclosure | PDS Series

Click thumbnails for larger images:

Request prices

Ideal For:

  • Indoor and Outdoor Areas.

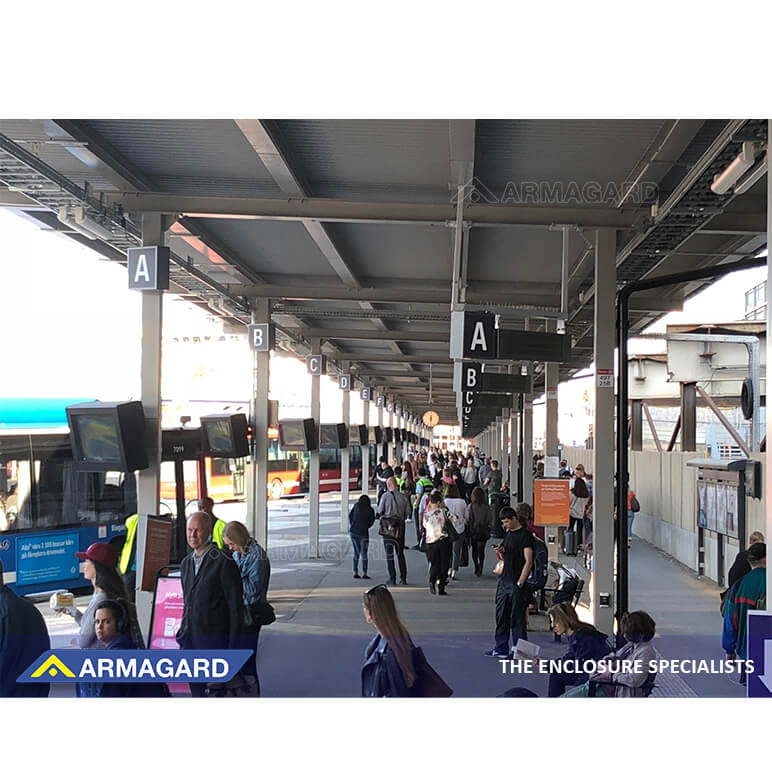

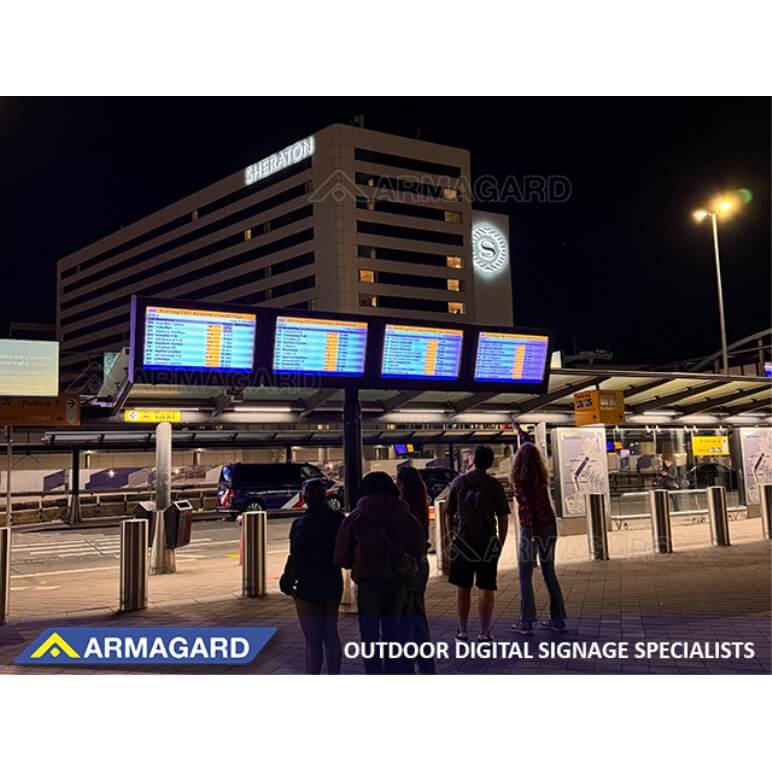

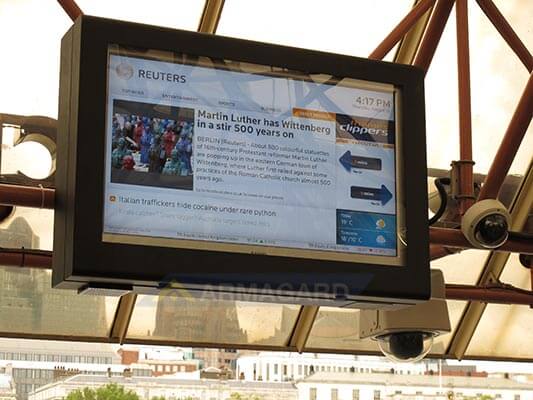

  • Train Stations, Bus Stops.

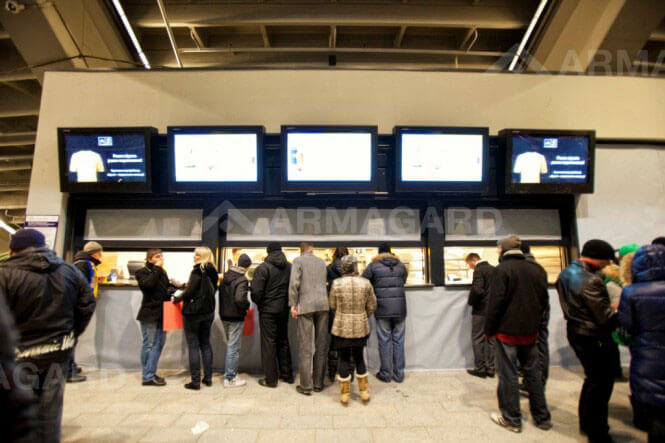

  • Sports Stadiums, Race Tracks.
  • Restaurant Patios, Pub Gardens.
  • Schools, Industrial Areas.

At A Glance:

Size (HxWxD)mm:
See Image below
Material:
Powder Coated Mild Steel
Screen Size:
Up to 75"
Mounting:
Wall or stand
IP Rating:
IP54
Product Code:
PDS-series-uk

Jet Wash Video:

Video of jet washing Armagard LCD Enclosure

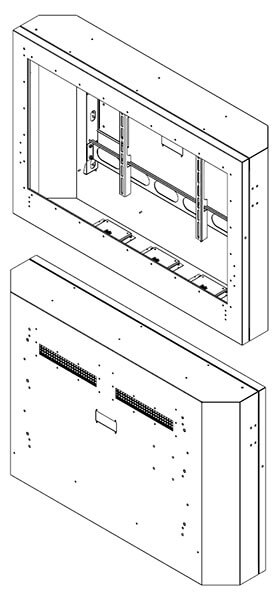

New, LCD Enclosure Slim Solution

A brand new slim LCD enclosure is also available, providing all the protective benefits of the standard enclosure, but with improved temperature management and design qualities. Key components have been remodelled to increase airflow efficiency, and a rescaled size gives the enclosure a streamlined and slimmer appearance. The slim solution is compatible with all existing Armagard components, and most professional VESA displays.

For full specifications & prices — Contact Us Now!

Features & Benefits:

Sealed, lockable and secure an Armagard LCD enclosure offers the best solution to protect your LCD display and digital signage from theft, vandalism and damage caused by outdoor or harsh industrial environments.

Your LCD screen protected against:

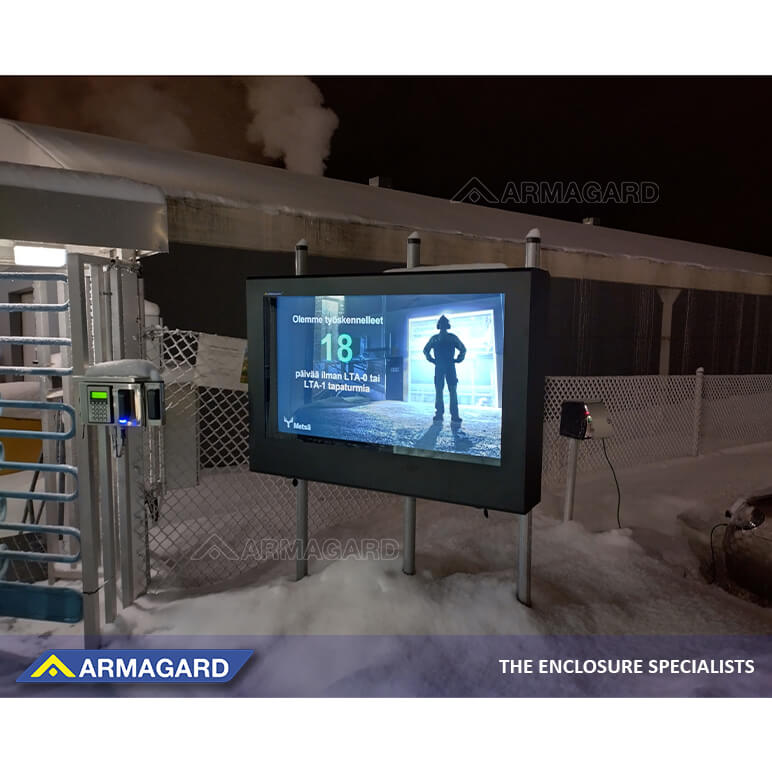

  • Light or heavy rainfall - ideal for outdoor locations
  • Dust and small particulates - ideal for industrial environments
  • Electrical surges - making computer crashes a thing of the past
  • Physical impact - cutting down on repairs and accidents
  • Temperature extremes - saving you money on additional heaters or air-conditioning
  • Theft - enabling peace of mind
For full specifications & prices — Contact Us Now!

Specifications:

Armagard LCD Enclosures - all in one digital signage protection.

Armagard LCD Enclosures PDS-series sizes
Table describing the Size (H x W x D), mounting orientation, fabrication material and product codes for the Armagard LCD enclosure range.
Max Screen Size: Height (mm): Width (mm): Depth (mm): Product Code:
19″ 500 545 214 PDS-19-W-L
24″ 523 721 214 PDS-24-W-L
32″ 630 895 233 PDS-32-W-L
42″ 761 1127 232 PDS-42-W-L
47″ 815 1230 248 PDS-47-W-L
52″ 936 1351 248 PDS-52-W-L
55″ 980 1430 246 PDS-55-W-L
60″ 1050 1530 247 PDS-60-W-L
70″ 1227 1865 246 PDS-70-W-L
72″ 1227 1865 246 PDS-72-W-L
75″ 1227 1865 246 PDS-75-W-L
85″ 1293 2130 175 PDS-85-W-L

Armagard LCD enclosures are constructed according to European IP and International NEMA standards, ensuring protection from water and dust. Built from mild or stainless steel with a shatterproof screen Armagard LCD enclosures are shipped complete with Screen mounting brackets, wall mounting brackets are optional extra's.

For full specifications & prices — Contact Us Now!

Compatible Brand Display Types:

Manufacturers Product Code: Compatible: Slim Kit* Recommended:
Samsung QM43B ✓ ✓
Samsung QH43B ✓ ✓
Samsung BE43C-H ✓ ✓
Samsung QM50C ✓ ✓
Samsung QB55B ✓ ✓
Samsung QM55B ✓ ✓
Samsung QH55B ✓ ✓
Philips 50BDL4511D/00 ✓ ✓
LG 55XS4J-B ✓ ✓
Iiyama LH4370UHB-B1 ✓ ✓
Ilyama LH5554UHS-B1AG ✓
Iiyama Prolite LH8654UHS-B1AG ✓

Many legacy display models are also supported, check dimensions with your account manager.

* The Slim Kit allows the display to sit deeper within the enclosure.

We Guarantee:

Why Armagard?

  • High quality engineering
  • Over 30 years of industry experience
  • More than 100,000 Armagard enclosures protect production and distribution equipment

Five-year warranty

  • Enclosures carry a five-year warranty on all mechanical hardware and electrical components

Customer service

  • Lifetime technical support
  • Excellent ongoing customer service
  • Informed and helpful staff
